Power supply
Input voltage:
5 – 14 V
Reverse polarity protected
No possible return
Power Rating:
Up to 2W per SLC
Miscellaneous
Compatible LED:
Power LED with
IF > 70 mA and 2.4 V < UF < 3.4 V

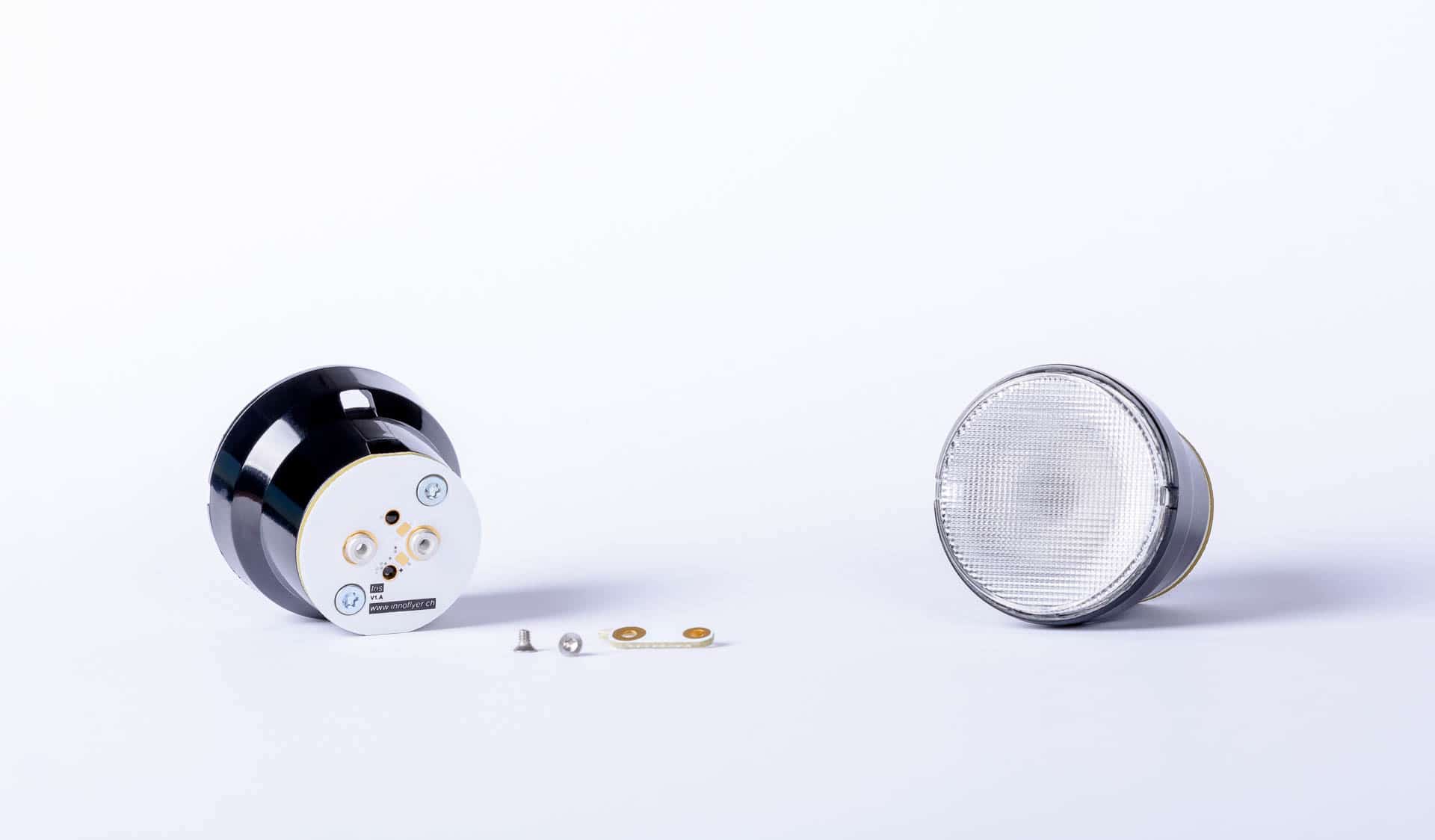

All innoflyer aircraft LED lights
Dimensions
Size:
51.2 x 70 x 8 mm / 2 x 2.6 x 0.3 in
Weight:
38 g / 1.3 oz
Connections
SLC Channels:
5
Slave-Terminals:
2 / max. 15 SLC Channels with 3 LD 5.0
USB:
USB 2.0 Standard / Micro-USB-Plug
RC-Receiver:
PWM / Uni Plug
External battery:
JST Plug
Features

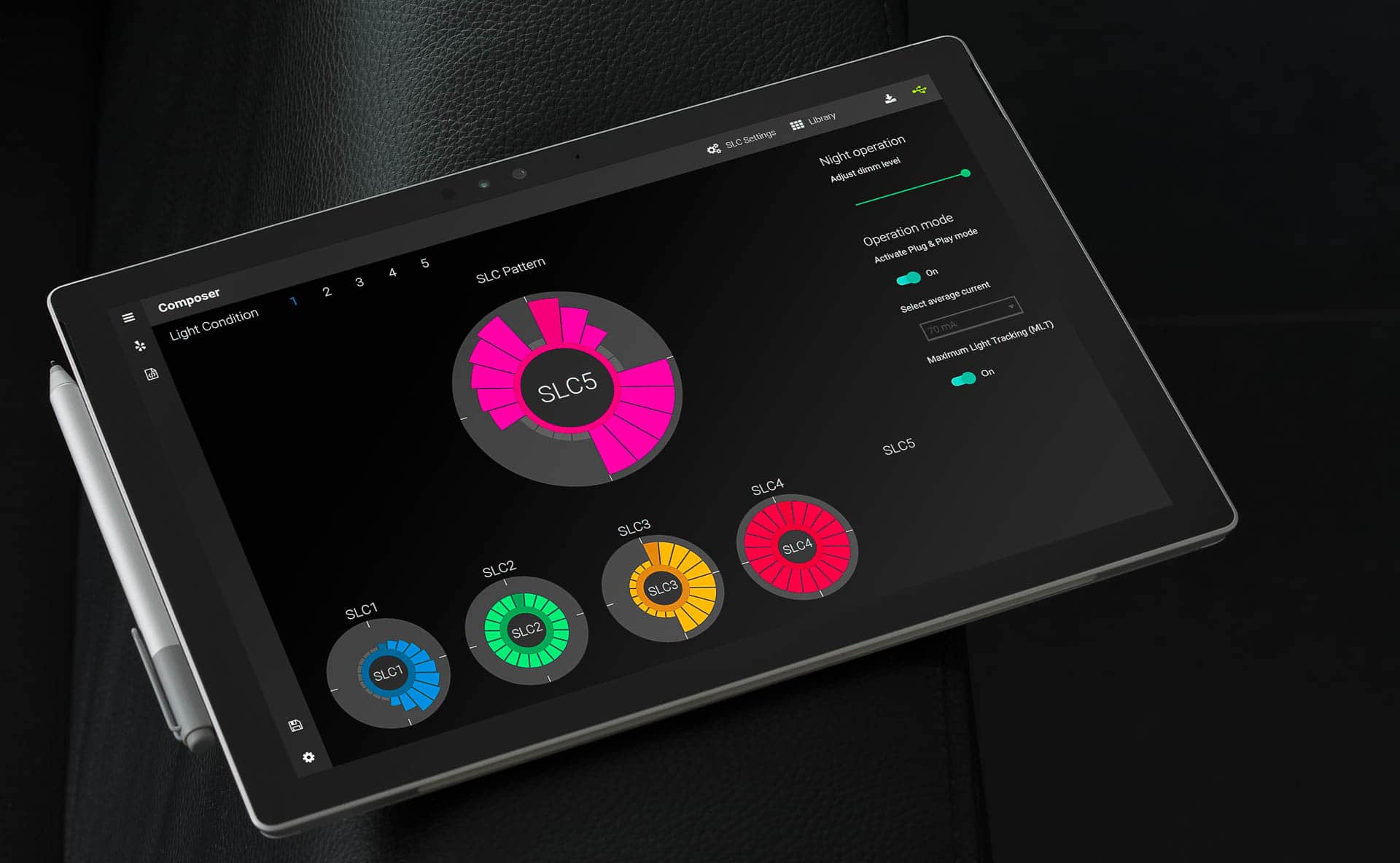

Composer:
With the composer you can playfully create your desired sequences.
Firmware Updater:
Whenever we make new features available for your LightDriver 5.0, you can use the firmware updater to make the changes to your LightDriver 5.0.
Load / Save Light Projects:
Your light compositions can be exported to a file via the Load / Save dialog and imported again at a later date.
Preset Library:
The Preset Library already has a large number of predefined light patterns. In addition, you can save your own light patterns.
Conditions
Operating system:
Windows 10 / 8 / (7) – 32 & 64 Bit
macOS 10.11 El Capitan or higher
Random access memory:
We recommend at least 512 MB of free RAM
Hard disk:
Depending on the version, the installation requires about 200 MB of free memory
Features
Temperature mesuraments:
All innoflyer aircraft LED lights are equipped with a temperature sensor.
Assembly:
The M2 mounting bolts facilitate perfect installation, even without sticking.
Connection cable:
30cm twisted with Uni plug.
